DS64EV100 - Programmable Single Equalizer

National Semiconductor

The DS64EV100 by National Semiconductor is a Programmable Single Equalizer. Below is the official datasheet preview.

📥 Download Datasheet

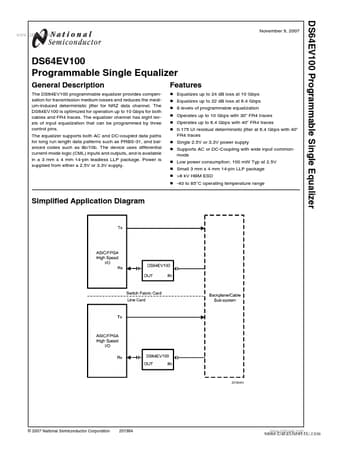

DS64EV100 Programmable Single Equalizer by National Semiconductor - Datasheet Preview — Official preview page of the **DS64EV100** Programmable Single Equalizer datasheet (National Semiconductor).

Datasheet Details

Part number	DS64EV100
Manufacturer	National Semiconductor
File Size	924.23 KB
Description	Programmable Single Equalizer
Datasheet	DS64EV100_NationalSemiconductor.pdf
Additional preview pages of the DS64EV100 datasheet.

DS64EV100 Product details

Description

The DS64EV100 programmable equalizer provides compensation for transmission medium losses and reduces the medium-induced deterministic jitter for NRZ data channel.

Features

Equalizes up to 24 dB loss at 10 Gbps Equalizes up to 22 dB loss at 6.4 Gbps 8 levels of programmable equalization Operates up to 10 Gbps with 30” FR4 traces Operates up to 6.4 Gbps with 40” FR4 traces 0.175 UI residual deterministic jitter at 6.4 Gbps with 40” FR4 traces Single 2.5V or 3.3V power supply Supports AC or DC-Coupling with wide input commonmode Low power consumption: 100 mW Typ at 2.5V Small 3 mm x 4 mm 14-pin L.
