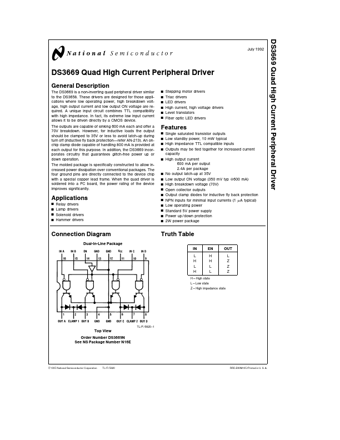

DS3669 - Quad High Current Peripheral Driver

National Semiconductor

📥 Download Datasheet

DS3669 Datasheet Preview — Preview of DS3669 PDF

Datasheet Details

Part number	DS3669
Manufacturer	National Semiconductor
File Size	98.07 KB
Description	Quad High Current Peripheral Driver
Datasheet	DS3669_NationalSemiconductor.pdf

DS3669 Product details

Description

The DS3669 is a non-inverting quad peripheral driver similar to the DS3658 These drivers are designed for those applications where low operating power high breakdown voltage high output current and low output ON voltage are required A unique input circuit combines TTL compatibility with high impedance In fact its extreme low input current allows it to be driven directly by a CMOS device The outputs are capable of sinking 600 mA each and offer a 70V breakdown However for inductive loads the outpu
