DS25BR120 - 3.125 Gbps LVDS Buffer

Description

The DS25BR120 is a single channel 3.125 Gbps LVDS buffer optimized for high-speed signal transmission over lossy FR-4 printed circuit board backplanes and balanced metallic cables.

Fully differential signal paths ensure exceptional signal integrity and noise immunity.

Features

  • four levels of pre-emphasis (PE) for use as an optimized driver device. Other LVDS devices with similar IO characteristics include the following products. The DS25BR110 features four levels of equalization for use as an optimized receiver device, while the DS25BR100 features both pre-emphasis and equalization for use as an optimized repeater device. The DS25BR150 is a buffer/repeater with the lowest power consumption and does not feature transmit pre-emphasis nor receive equalization. Wide input.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DS25BR120 DS25BR120 3.125 Gbps LVDS Buffer with Transmit Pre-Emphasis (Rev. E) ETCTI
DS25BR100 DS25BR100/101 3.125Gbps LVDS Buffer w/Transmit Pre-Empha Rcve Equalization (Rev. F) ETCTI
DS25BR101 DS25BR100/101 3.125Gbps LVDS Buffer w/Transmit Pre-Empha Rcve Equalization (Rev. F) ETCTI
DS25BR110 DS25BR110 3.125 Gbps LVDS Buffer with Receive Equalization (Rev. E) ETCTI
DS25BR150 DS25BR150 3.125 Gbps LVDS Buffer (Rev. E) ETCTI

Other Datasheets by National Semiconductor (Texas Instruments)

Part Number Description
DS25BR100 3.125 Gbps LVDS Buffer
DS25BR100 (DS25BR100 / DS25BR101) 3.125 Gbps LVDS Buffer
DS25BR101 (DS25BR100 / DS25BR101) 3.125 Gbps LVDS Buffer
DS25BR110 3.125 Gbps LVDS Buffer
DS25BR150 3.125 Gbps LVDS Buffer

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

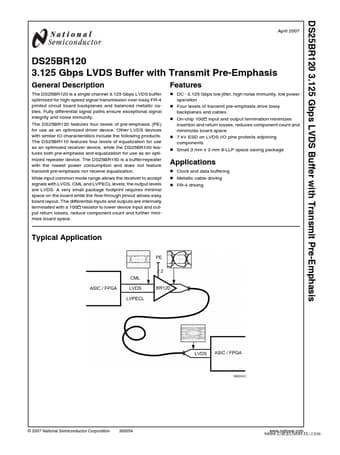

DS25BR120 3.125 Gbps LVDS Buffer with Transmit Pre-Emphasis April 2007 DS25BR120 3.125 Gbps LVDS Buffer with Transmit Pre-Emphasis General Description The DS25BR120 is a single channel 3.125 Gbps LVDS buffer optimized for high-speed signal transmission over lossy FR-4 printed circuit board backplanes and balanced metallic cables. Fully differential signal paths ensure exceptional signal integrity and noise immunity. The DS25BR120 features four levels of pre-emphasis (PE) for use as an optimized driver device. Other LVDS devices with similar IO characteristics include the following products. The DS25BR110 features four levels of equalization for use as an optimized receiver device, while the DS25BR100 features both pre-emphasis and equalization for use as an optimized repeater device.
