DS10CP154 - 1.5 Gbps LVDS Crosspoint Switch

Name: DS10CP154
SKU: DS10CP154-606367

National Semiconductor

📥 Download Datasheet

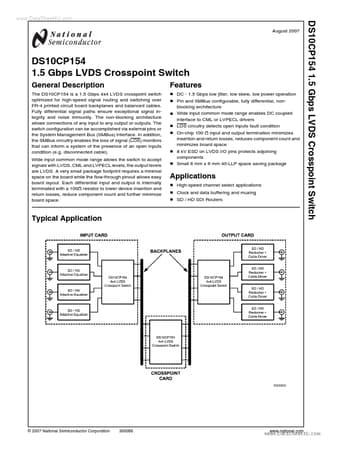

DS10CP154 Datasheet Preview — Preview of DS10CP154 PDF

Datasheet Details

Part number	DS10CP154
Manufacturer	National Semiconductor
File Size	367.98 KB
Description	1.5 Gbps LVDS Crosspoint Switch
Datasheet	DS10CP154_NationalSemiconductor.pdf

DS10CP154 Product details

Description

The DS10CP154 is a 1.5 Gbps 4x4 LVDS crosspoint switch optimized for high-speed signal routing and switching over FR-4 printed circuit board backplanes and balanced cables.

Features

DC - 1.5 Gbps low jitter, low skew, low power operation.
Pin and SMBus configurable, fully differential, non.
blocking architecture Wide input common mode range enables DC coupled interface to CML or LVPECL drivers LOS circuitry detects open inputs fault condition On-chip 100 Ω input and output termination minimizes insertion and return losses, reduces component count and minimizes board space 8 kV ESD on LVDS I/O pins protects adjoining components Small 6.
