DP83848H - Extreme Temperature Single 10/100 Ethernet Transceiver

National Semiconductor

The DP83848H by National Semiconductor is a Extreme Temperature Single 10/100 Ethernet Transceiver. Below is the official datasheet preview.

📥 Download Datasheet

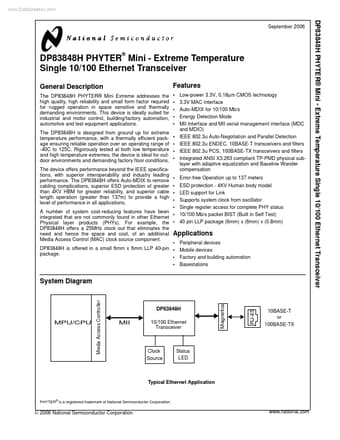

DP83848H Extreme Temperature Single 10/100 Ethernet Transceiver by National Semiconductor - Datasheet Preview — Official preview page of the **DP83848H** Extreme Temperature Single 10/100 Ethernet Transceiver datasheet (National Semiconductor).

Datasheet Details

Part number	DP83848H
Manufacturer	National Semiconductor
File Size	913.86 KB
Description	Extreme Temperature Single 10/100 Ethernet Transceiver
Datasheet	DP83848H_NationalSemiconductor.pdf
Additional preview pages of the DP83848H datasheet.

DP83848H Product details

Description

The DP83848H PHYTER® Mini Extreme addresses the high quality, high reliability and small form factor required for rugged operation in space sensitive and thermally demanding environments.

Features

Low-power 3.3V, 0.18µm CMOS technology 3.3V MAC Interface Auto-MDIX for 10/100 Mb/s Energy Detection Mode MII Interface and MII serial management interface (MDC and MDIO) IEEE 802.3u Auto-Negotiation and Parallel Detection IEEE 802.3u ENDEC, 10BASE-T transceivers and filters IEEE 802.3u PCS, 100BASE-TX transceivers and filters Integrated ANSI X3.263 compliant TP-PMD physical sublayer with adaptive equalizat.
