DM75494 - hex digit driver

Product Overview

National Semiconductor

Part number	DM75494
Manufacturer	National Semiconductor
File Size	90.76 KB
Description	hex digit driver
Datasheet	DM75494 Datasheet

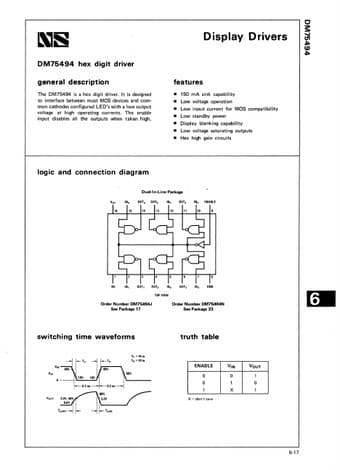

Additional preview pages of the DM75494 datasheet.

The DM75494 is a hex digit driver. mon cathodes configured LED's with a low output voltage at high operating currents.

150 mA sink capability.
Low voltage operation.
Low input current for MOS compatibility.
Low standby power.
Display blanking capability.
Low voltage saturating outputs.
Hex high gain circuits logic and connection diagram Dual~1 n-Line Package Vee INs OUTs OUT5 INs OUT. IN4 ENABLE Ne IN, OUT, DUT2 IN2 DUl3 INa GND.
