DM74LS151 - Data Selector/Multiplexer

National Semiconductor

📥 Download Datasheet

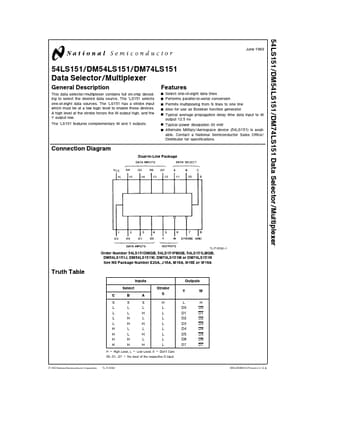

DM74LS151 Datasheet Preview — Preview of DM74LS151 PDF

Datasheet Details

Part number	DM74LS151
Manufacturer	National Semiconductor
File Size	140.89 KB
Description	Data Selector/Multiplexer
Datasheet	DM74LS151_NationalSemiconductor.pdf

DM74LS151 Product details

Description

This data selector multiplexer contains full on-chip decoding to select the desired data source The ’LS151 selects one-of-eight data sources The ’LS151 has a strobe input which must be at a low logic level to enable these devices A high level at the strobe forces the W output high and the Y output low The ’LS151

Features

complementary W and Y outputs Features Y Y Y Y Y Y Y Select one-of-eight data lines Performs parallel-to-serial conversion Permits multiplexing from N lines to one line Also for use as Boolean function generator Typical average propagation delay time data input to W output 12 5 ns Typical power dissipation 30 mW Alternate Military Aerospace device (54LS151) is available Contact a National Semiconductor Sales Office Distributor for specifications Connection Diagram Dual-In-Line Package TL F.
