DM74LS08 - Quad 2-Input AND Gates

National Semiconductor

Datasheet Details

Part number	DM74LS08
Manufacturer	National Semiconductor
File Size	124.51 KB
Description	Quad 2-Input AND Gates
Datasheet	DM74LS08_NationalSemiconductor.pdf

This device contains four independent gates each of which performs the logic AND function

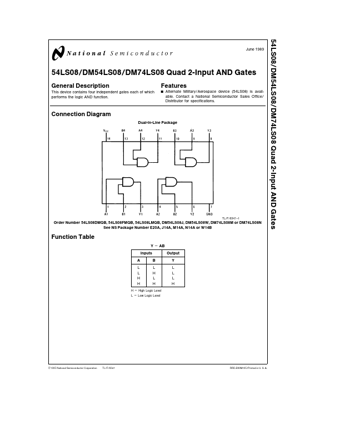

Y Alternate Military Aerospace device (54LS08) is available Contact a National Semiconductor Sales Office Distributor for specifications Connection Diagram Dual-In-Line Package TL F 6347.
1 Order Number 54LS08DMQB 54LS08FMQB 54LS08LMQB DM54LS08J DM54LS08W DM74LS08M or DM74LS08N See NS Package Number E20A J14A M14A N14A or W14B Function Table Y e AB Inputs A L L H H B L H L H Output Y L L L H H e High Logic Level L e Low Logic Level C1995 National Semiconductor Corporation TL F 6.
