DM7450 - Expandable Dual 2-Wide 2-Input AND-OR-INVERT Gate

Description

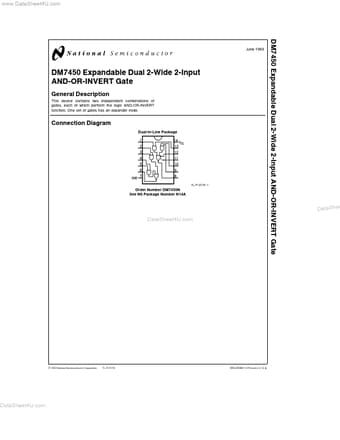

This device contains two independent combinations of gates each of which perform the logic AND-OR-INVERT function One set of gates has an expander node Connection Diagram Dual-In-Line Package TL F 9778 1 Order Number DM7450N See NS Package Number N14A DataShee DataSheet4U.com C1995 N
