DM7437 - Quad 2-Input NAND Buffers

National Semiconductor

Datasheet Details

Part number	DM7437
Manufacturer	National Semiconductor
File Size	84.28 KB
Description	Quad 2-Input NAND Buffers

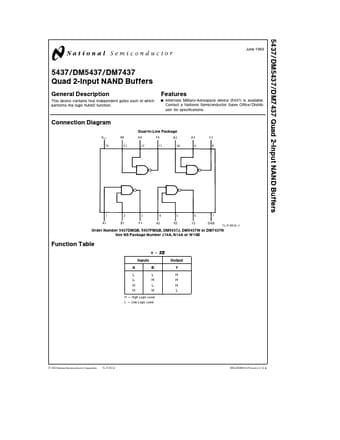

Datasheet	DM7437-NationalSemiconductor.pdf

This device contains four independent gates each of which performs the logic NAND function

Y Alternate Military Aerospace device (5437) is available Contact a National Semiconductor Sales Office Distributor for specifications Connection Diagram Dual-In-Line Package TL F 6512.
1 Order Number 5437DMQB 5437FMQB DM5437J DM5437W or DM7437N See NS Package Number J14A N14A or W14B Function Table Y e AB Inputs AB LL LH HL HH H e High Logic Level L e Low Logic Level Output Y H H H L C1995 National Semiconductor Corporation TL F 6512 RRD-B30M105 Printed in U S A Absolute Maxim.
