DM54LS161A - Synchronous 4-Bit Binary Counters

National Semiconductor

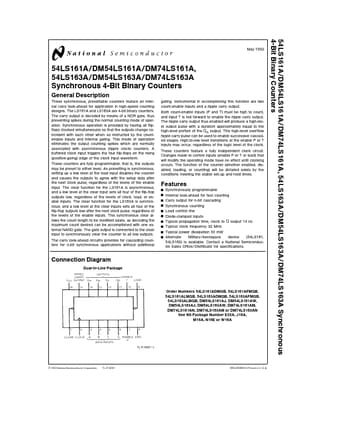

DM54LS161A Datasheet Preview — Preview of DM54LS161A PDF

Datasheet Details

Part number	DM54LS161A
Manufacturer	National Semiconductor ↗
File Size	210.74 KB
Description	Synchronous 4-Bit Binary Counters
Datasheet	DM54LS161A_NationalSemiconductor.pdf

DM54LS161A Product details

Description

These synchronous presettable counters feature an internal carry look-ahead for application in high-speed counting designs The LS161A and LS163A are 4-bit binary counters The carry output is decoded by means of a NOR gate thus preventing spikes during the normal counting mode of operation Synchronous operation is provided by having all flipflops clocked simultaneously so that the outputs change coincident with each other when so instructed by the countenable inputs and internal gating This mode

Features

Y Y Y Y Y Y Y Y Y Y Synchronously programmable Internal look-ahead for fast counting Carry output for n-bit cascading Synchronous counting Load control line Diode-clamped inputs Typical propagation time clock to Q output 14 ns Typical clock frequency 32 MHz Typical power dissipation 93 mW Alternate Military Aerospace device (54LS161 54LS163) is available Contact a National Semiconductor Sales Office Distributor for specificaitons Connection Diagram Dual-In-Line Package Order Numbers 54LS161AD.
