DM54LS03 - Quad 2-Input NAND Gates with Open-Collector Outputs

National Semiconductor

The DM54LS03 by National Semiconductor is a Quad 2-Input NAND Gates with Open-Collector Outputs. Below is the official datasheet preview.

📥 Download Datasheet

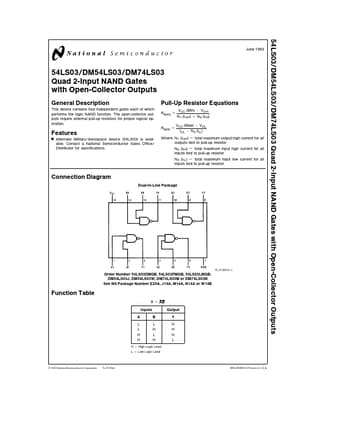

DM54LS03 Quad 2-Input NAND Gates with Open-Collector Outputs by National Semiconductor - Datasheet Preview — Official preview page of the **DM54LS03** Quad 2-Input NAND Gates with Open-Collector Outputs datasheet (National Semiconductor).

Datasheet Details

Part number	DM54LS03
Manufacturer	National Semiconductor
File Size	127.11 KB
Description	Quad 2-Input NAND Gates with Open-Collector Outputs
Datasheet	DM54LS03_NationalSemiconductor.pdf
Additional preview pages of the DM54LS03 datasheet.

DM54LS03 Product details

Description

This device contains four independent gates each of which performs the logic NAND function The open-collector outputs require external pull-up resistors for proper logical operation Pull-Up Resistor Equations RMAX e VCC (Min) b VOH N1 (IOH) a N2 (IIH)

Features

Y VCC (Max) b VOL RMIN e IOL b N3 (IIL) Where N1 (IOH) e total maximum output high current for all outputs tied to pull-up resistor N2 (IIH) e total maximum input high current for all inputs tied to pull-up resistor N3 (IIL) e total maximum input low current for all inputs tied to pull-up resistor Alternate Military Aerospace device (54LS03) is available Contact a National Semiconductor Sales Office Distributor for specifications Connection Diagram Dual-In-Line Package TL F 6344.
1.
