DAC0807 - 8-Bit D/A Converters

National Semiconductor

📥 Download Datasheet

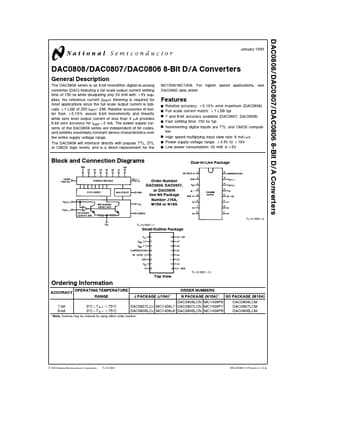

DAC0807 Datasheet Preview — Preview of DAC0807 PDF

Datasheet Details

Part number	DAC0807
Manufacturer	National Semiconductor
File Size	211.47 KB
Description	8-Bit D/A Converters
Datasheet	DAC0807-NationalSemiconductor.pdf

DAC0807 Product details

Description

The DAC0808 series is an 8-bit monolithic digital-to-analog converter (DAC) featuring a full scale output current settling time of 150 ns while dissipating only 33 mW with g 5V supplies No reference current (IREF) trimming is required for most applications since the full scale output current is typically g 1 LSB of 255 IREF 256 Relative accuracies of better than g 0 19% assure 8-bit monotonicity and linearity while zero level output current of less than 4 mA provides 8-bit zero accuracy for IREF

Features

Y Y Y Y Y Y Y Y Relative accuracy g 0 19% error maximum (DAC0808) Full scale current match g 1 LSB typ 7 and 6-bit accuracy available (DAC0807 DAC0806) Fast settling time 150 ns typ Noninverting digital inputs are TTL and CMOS compatible High speed multiplying input slew rate 8 mA ms Power supply voltage range g 4 5V to g 18V Low power consumption 33 mW g 5V Block and Connection Diagrams Dual-In-Line Package Order Number DAC0808 DAC0807 or DAC0806 See NS Package Number J16A M16A or N16A TL.
