COP87L88GG, COP-87L - 8-Bit One-Time Programmable OTP Microcontroller with UART and Three Multi-Function Timers

National Semiconductor

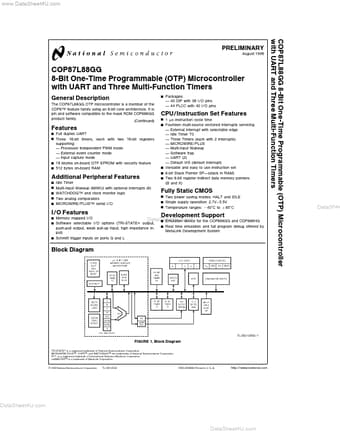

COP87L88GG Datasheet Preview — This datasheet PDF includes multiple part numbers: COP87L88GG, COP-87L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	COP87L88GG, COP-87L
Manufacturer	National Semiconductor ↗
File Size	584.94 KB
Description	8-Bit One-Time Programmable OTP Microcontroller with UART and Three Multi-Function Timers
Datasheet	COP-87L-88GG.pdf
Note	This datasheet PDF includes multiple part numbers: COP87L88GG, COP-87L. Please refer to the document for exact specifications by model.

COP87L88GG Product details

Description

The COP87L88GG OTP microcontroller is a member of the COP8TM feature family using an 8-bit core architecture It is pin and software compatible to the mask ROM COP888GG product family (Continued) Y Packages 40 DIP with 36 I O pins 44 PLCC with 40 I O pins CPU Instruction Set

Features

Y Y Features Y Y Y Y Full duplex UART Three 16-bit timers each with two 16-bit registers supporting Processor independent PWM mode External event counter mode Input capture mode 16 kbytes on-board OTP EPROM with security feature 512 bytes on-board RAM Y Y Additional Peripheral Features Y Y Y Y Y Y Idle Timer Multi-Input Wakeup (MIWU) with optional interrupts (8).
