CD4031BM - 64-Stage Static Shift Register

National Semiconductor

📥 Download Datasheet

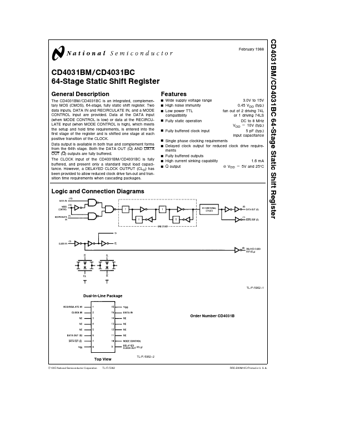

CD4031BM Datasheet Preview — Preview of CD4031BM PDF

Datasheet Details

Part number	CD4031BM
Manufacturer	National Semiconductor
File Size	145.98 KB
Description	64-Stage Static Shift Register
Datasheet	CD4031BM_NationalSemiconductor.pdf

CD4031BM Product details

Description

The CD4031BM CD4031BC is an integrated complementary MOS (CMOS) 64-stage fully static shift register Two data inputs DATA IN and RECIRCULATE IN and a MODE CONTROL input are provided Data at the DATA input (when MODE CONTROL is low) or data at the RECIRCULATE input (when MODE CONTROL is high) which meets the setup and hold time requirements is entered into the first stage of the register and is shifted one stage at each positive transition of the CLOCK Data output is available in both true and co

Features

Y Y Y Y Wide supply voltage range High noise immunity Low power TTL compatibility Fully static operation Y Y Y Y Y Y 3 0V to 15V 0 45 VDD (typ ) fan out of 2 driving 74L or 1 driving 74LS DC to 8 MHz VDD e 10V (typ ) Fully buffered clock input 5 pF (typ ) input capacitance Single phase clocking requirements Delayed clock output for reduced clock drive requirements Fully buffered outputs High current sinking capability 1 6 mA Q output VDD e 5V and 25 C Logic and Connection Diagrams TL F 5.
