CD4001BM - NOR Buffered B Series Gate

National Semiconductor

CD4001BM Datasheet Preview — Preview of CD4001BM PDF

Datasheet Details

Part number	CD4001BM
Manufacturer	National Semiconductor ↗
File Size	156.30 KB
Description	NOR Buffered B Series Gate
Datasheet	CD4001BM-NationalSemiconductor.pdf

CD4001BM Product details

Description

These quad gates are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and P-channel enhancement mode transistors They have equal source and sink current capabilities and conform to standard B series output drive The devices also have buffered outputs which improve transfer characteristics by providing very high gain All inputs are protected against static discharge with diodes to VDD and VSS

Features

Y Low power TTL compatibility Fan out of 2 driving 74L or 1 driving 74LS Y 5V.
10V.

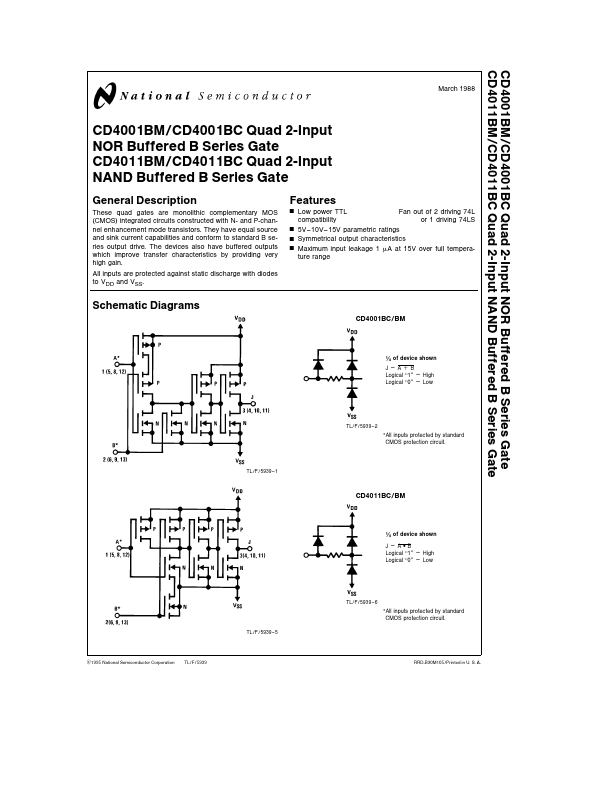

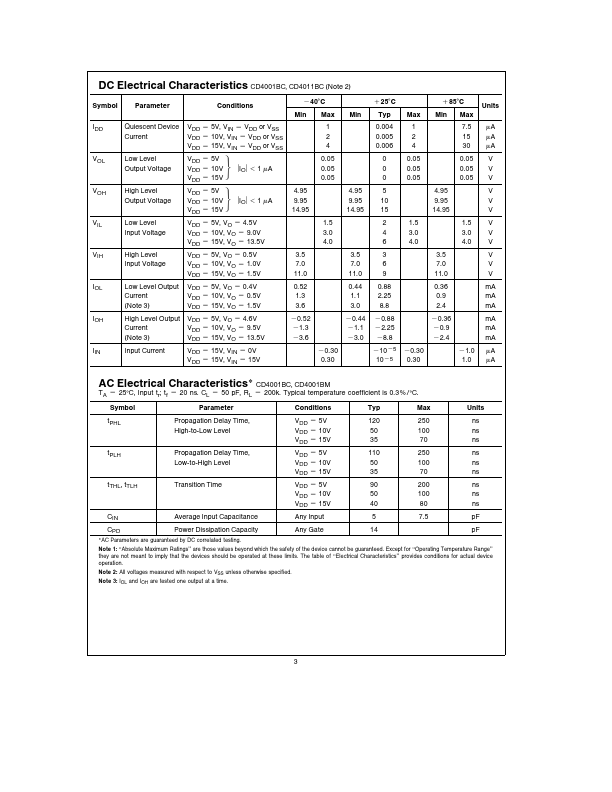

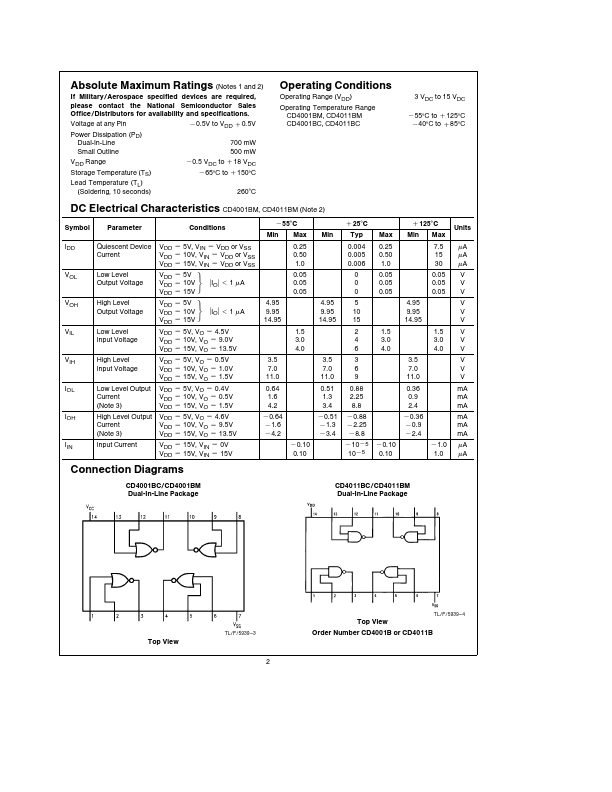

15V parametric ratings Y Symmetrical output characteristics Y Maximum input leakage 1 mA at 15V over full temperature range Schematic Diagrams CD4001BC BM of device shown JeAaB Logical ‘‘1’’ e High Logical ‘‘0’’ e Low TL F 5939.
1 C1995 National Semiconductor Corporation TL F 5939 TL F 5939.
5 TL F 5939.
2 All inputs protected by standard CMOS protection c.
