AF105, AF104 - DTMF AGC Amplifier

Name: AF105
SKU: AF105-1149284

National Semiconductor

📥 Download Datasheet

AF105 Datasheet Preview — This datasheet PDF includes multiple part numbers: AF105, AF104. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	AF105, AF104
Manufacturer	National Semiconductor
File Size	103.38 KB
Description	DTMF AGC Amplifier
Datasheet	AF104-NationalSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: AF105, AF104. Please refer to the document for exact specifications by model.

AF105 Product details

Description

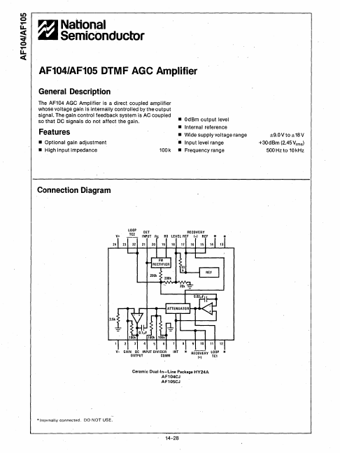

The AF104 AGC Amplifier is a direct coupled amplifier whose voltage gain is internally controlled by the output signal.The gain control feedback system is AC coupled so that DC signals do not affect the gain.

Features

- Optional gain adjustment - High input impedance 100k - OdBm output level - Internal reference - Wide supply voltage range - Input level range - Frequency range ±9.0 V to ±18 V +30dBm (2.45Vrms) 500 Hz to 10 kHz Connection Diagram LOOP TC2 24.
V- GAIN DC INPUT.
