ADCS7477 - 1MSPS/ 12-/10-/8-Bit A/D Converters in 6-Lead SOT-23

Download the ADCS7477 datasheet PDF (ADC included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 1msps/ 12-/10-/8-bit a/d converters in 6-lead sot-23.

Description

The ADCS7476, ADCS7477, and ADCS7478 are low power, monolithic CMOS 12-, 10- and 8-bit analog-to-digital converters that operate at 1 MSPS.

The ADCS7476/77/78 are drop-in replacements for Analog Devices’ AD7476/77/78.

Features

  • n n n n n Variable power management Packaged in 6-lead, SOT-23 Power supply used as reference Single +2.7V to +5.25V supply operation SPI™/QSPI™/.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ADC-S74.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • ADCS7477 - A/D Converters (Texas Instruments)
  • ADCS7476 - A/D Converters (Texas Instruments)
  • ADCS7478 - A/D Converters (Texas Instruments)
  • ADCS-1021 - CMOS Image Sensors (Agilent)
  • ADCS-1120 - (ADCS-1120/-2120) Agilent CMOS Monochrome Image Sensors (Hewlett-Packard)
  • ADCS-1121 - (ADCS-1121/-2121) CMOS Monochrome Image Sensors (Hewlett-Packard)
  • ADCS-2021 - CMOS Image Sensors (Agilent)
  • ADCS-2120 - (ADCS-1120/-2120) Agilent CMOS Monochrome Image Sensors (Hewlett-Packard)
  • ADCS9888 - 205/170/140 MSPS Video Analog Front End (Texas Instruments)
  • ADC-0802 - A/D Converters (Harris)
Other Datasheets by National Semiconductor
  • ADCS7476 - 1MSPS/ 12-/10-/8-Bit A/D Converters in 6-Lead SOT-23
  • ADCS7478 - 1MSPS/ 12-/10-/8-Bit A/D Converters in 6-Lead SOT-23
  • ADCS9888 - 205/170/140 MSPS Video Analog Front End
  • ADCS9888 - 205/170/140 MSPS Video Analog Front End
  • ADC0800 - ADC0800 8-Bit A/D Converter
  • ADC0801 - 8-Bit uP Compatible A/D Converters
  • ADC0802 - 8-Bit uP Compatible A/D Converters
  • ADC0803 - 8-Bit uP Compatible A/D Converters

Full PDF Text Transcription

Click to expand full text

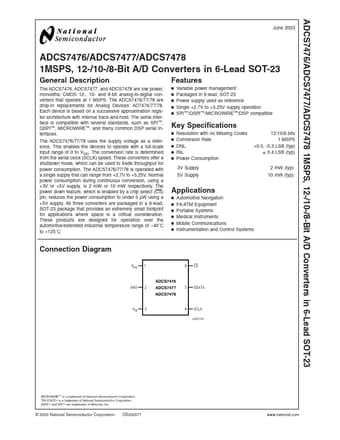

ADCS7476/ADCS7477/ADCS7478 1MSPS, 12-/10-/8-Bit A/D Converters in 6-Lead SOT-23 June 2003 ADCS7476/ADCS7477/ADCS7478 1MSPS, 12-/10-/8-Bit A/D Converters in 6-Lead SOT-23 General Description The ADCS7476, ADCS7477, and ADCS7478 are low power, monolithic CMOS 12-, 10- and 8-bit analog-to-digital converters that operate at 1 MSPS. The ADCS7476/77/78 are drop-in replacements for Analog Devices’ AD7476/77/78. Each device is based on a successive approximation register architecture with internal track-and-hold. The serial interface is compatible with several standards, such as SPI™, QSPI™, MICROWIRE™, and many common DSP serial interfaces. The ADCS7476/77/78 uses the supply voltage as a reference. This enables the devices to operate with a full-scale input range of 0 to VDD.
