ADC10738, ADC10734 - 10-Bit Plus Sign Serial I/O A/D Converters

National Semiconductor

Datasheet Details

Part number	ADC10738, ADC10734
Manufacturer	National Semiconductor
File Size	545.33 KB
Description	10-Bit Plus Sign Serial I/O A/D Converters
Datasheet	ADC10734-NationalSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: ADC10738, ADC10734. Please refer to the document for exact specifications by model.

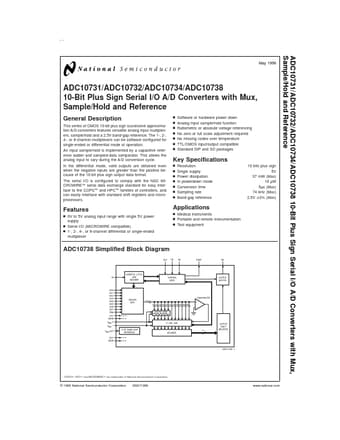

This series of CMOS 10-bit plus sign successive approximation A/D converters

versatile analog input multiplexers, sample/hold and a 2.5V band-gap reference. The 1-, 2-, 4-, or 8-channel multiplexers can be software configured for single-ended or differential mode of operation. An input sample/hold is implemented by a capacitive reference ladder and sampled-data comparator. This allows the analog input to vary during the A/D conversion cycle. In the differential mode, valid outputs are obtained even when the negative inputs are greater than the positive because of the 10-.
