ADC10461 - 10-Bit 600ns A/D Converter

Name: ADC10461
SKU: ADC10461-166290

National Semiconductor

📥 Download Datasheet

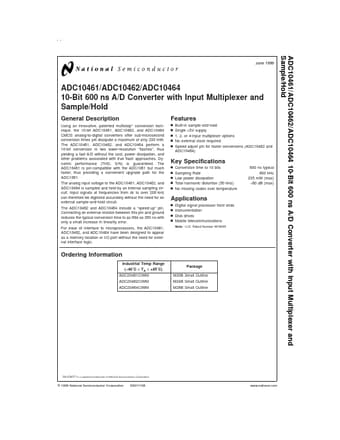

ADC10461 Datasheet Preview — Preview of ADC10461 PDF

Datasheet Details

Part number	ADC10461
Manufacturer	National Semiconductor
File Size	333.84 KB
Description	10-Bit 600ns A/D Converter
Datasheet	ADC10461_NationalSemiconductor.pdf

ADC10461 Product details

Description

Using an innovative, patented multistep conversion technique, the 10-bit ADC10461, ADC10462, and ADC10464 CMOS analog-to-digital converters offer sub-microsecond conversion times yet dissipate a maximum of only 235 mW.

Features

n n n n n Built-in sample-and-hold Single +5V supply 1, 2, or 4-input multiplexer options No external clock required Speed adjust pin for faster conversions (ADC10462 and ADC10464) Key Specifications n n n n n Conversion time to 10 bits Sampling Rate Low power dissipation Total harmonic distortion (50 kHz) No missing codes over temperature 600 ns typical 800 kHz 235 mW (max).
60 dB (max).
