78L05 - 3-Terminal Positive Regulators

National Semiconductor

The 78L05 by National Semiconductor is a 3-Terminal Positive Regulators. Below is the official datasheet preview.

📥 Download Datasheet

78L05 3-Terminal Positive Regulators by National Semiconductor - Datasheet Preview — Official preview page of the **78L05** 3-Terminal Positive Regulators datasheet (National Semiconductor).

Datasheet Details

Part number	78L05
Manufacturer	National Semiconductor
File Size	199.52 KB
Description	3-Terminal Positive Regulators
Datasheet	78L05-NationalSemiconductor.pdf

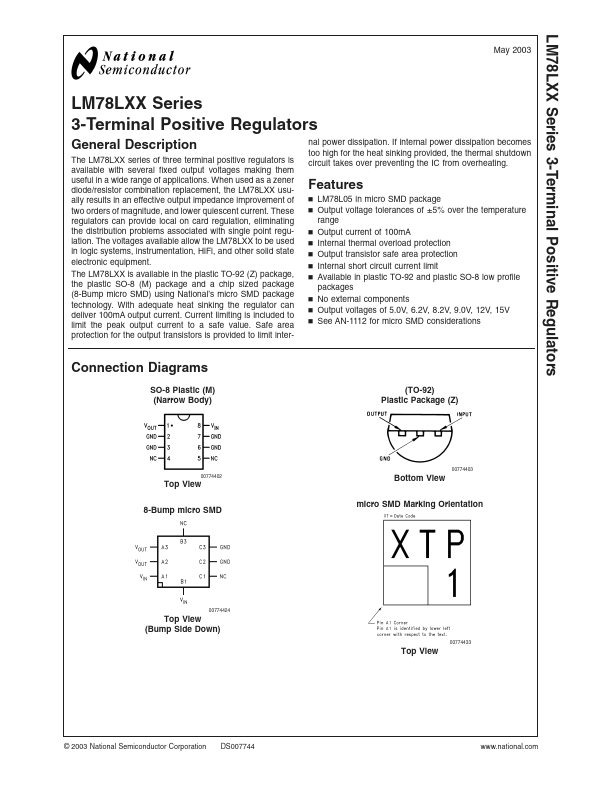

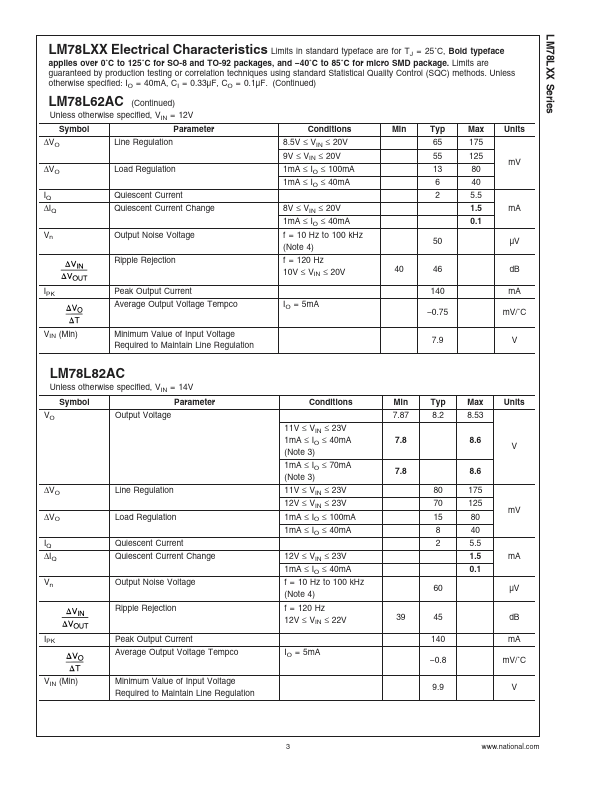

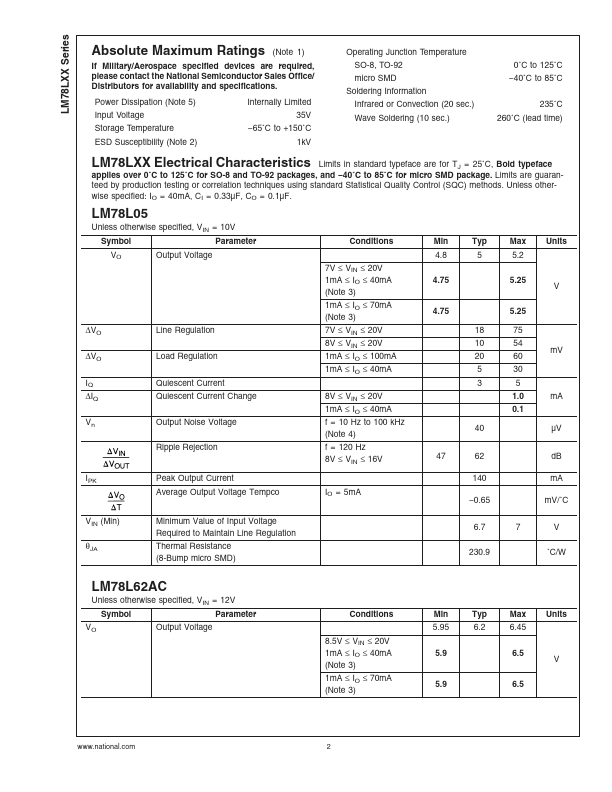

Additional preview pages of the 78L05 datasheet.

78L05 Product details

Description

The LM78LXX series of three terminal positive regulators is available with several fixed output voltages making them useful in a wide range of applications.

Features

n LM78L05 in micro SMD package n Output voltage tolerances of ±5% over the temperature range n Output current of 100mA n Internal thermal overload protection n Output transistor safe area protection n Internal short circuit current limit n Available in plastic TO-92 and plastic SO-8 low profile packages n No external components n Output voltages of 5.0V, 6.2V, 8.2V, 9.0V, 12V, 15V n See AN-1112 for micro SMD considerations Connection Diagrams SO-8 Plastic (M) (Narrow Body) (TO-92) Plastic Pack.
