74141 1-of-10 Decoder/Driver

National Semiconductor

74141 Description

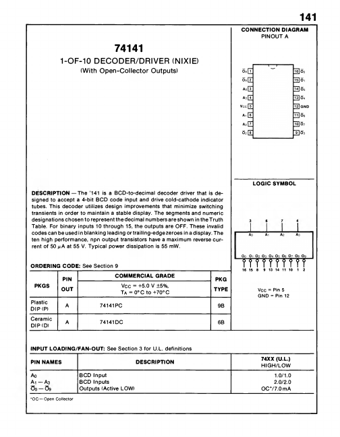

74141 1-OF-10 DECODER/DRIVER (NIXIE) (With Open-Collector Outputs) 141 CONNECTION DIAGRAM PINOUT A .
br>. The ’141 is a BCD-to-decimal decoder driver that is de signed to accept a 4-bit BCD code input and drive cold-cathode indicator tubes.

📥 Download Datasheet

74141 Datasheet Preview — Preview of 74141 PDF

Datasheet Details

Part number: 74141
Manufacturer: National Semiconductor
File Size: 298.12 KB
Datasheet: 74141_NationalSemiconductor.pdf
Description: 1-of-10 Decoder/Driver
