Datasheet Details
| Part number | 54LS365A |
|---|---|
| Manufacturer | National Semiconductor (Texas Instruments) |
| File Size | 194.82 KB |
| Description | Hex TRI-STATE Buffers |
| Datasheet |

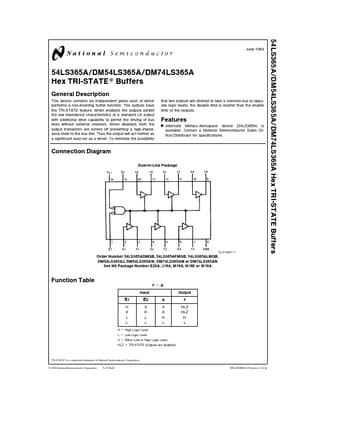

 54LS365A Datasheet
|
|
|
General Description
This device contains six independent gates each of which performs a non-inverting buffer function The outputs have the TRI-STATE feature When enabled the outputs exhibit the low impedance characteristics of a standard LS output with additional drive capability to permit the driving of bus lines with
Key Features
- Y Alternate Military Aerospace device (54LS365A) is available Contact a National Semiconductor Sales Office Distributor for specifications Connection Diagram Dual-In-Line Package TL F 6427.
- 1 Order Number 54LS365ADMQB 54LS365AFMQB 54LS365ALMQB DM54LS365AJ DM54LS365AW DM74LS265AM or DM74LS365AN See NS Package Number E20A J16A M16A N16E or W16A Function Table YeA Input G1 H X L L G2 X H L L A X X H L Output Y Hi-Z Hi-Z H L H e High Logic Level L e Low Logic Level X e Either Low or Hig.
