54C165 - Parallel-Load 8-Bit Shift Register

National Semiconductor

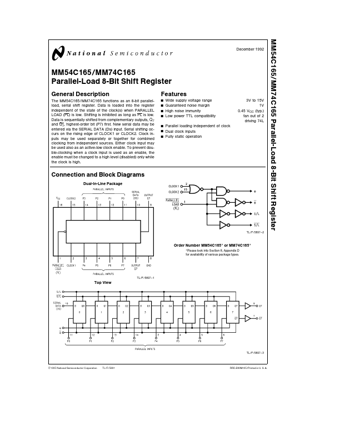

54C165 Datasheet Preview — Preview of 54C165 PDF

Datasheet Details

Part number	54C165
Manufacturer	National Semiconductor ↗
File Size	124.81 KB
Description	Parallel-Load 8-Bit Shift Register
Datasheet	54C165-NationalSemiconductor.pdf

54C165 Product details

Description

The MM54C165 MM74C165 functions as an 8-bit parallelload serial shift register Data is loaded into the register independent of the state of the clock(s) when PARALLEL LOAD (PL) is low Shifting is inhibited as long as PL is low Data is sequentially shifted from complementary outputs Q7 and Q7 highest-order bit (P7) first New serial data may be entered via the SERIAL DATA (Ds) input Serial shifting occurs on the rising edge of CLOCK1 or CLOCK2 Clock inputs may be used separately or together for co

Features

Y Wide supply voltage range Y Guaranteed noise margin Y High noise immunity Y Low power TTL compatibility Y Parallel loading independent of clock Y Dual clock inputs Y Fully static operation 3V to 15V 1V 0 45 VCC (typ ) fan out of 2 driving 74L Connection and Block Diagrams Dual-In-Line Package Top View TL F 5897.
2 Order Number MM54C165 or MM74C165 Please look into Section 8 Appendix D for availability of various package types TL F 5897.
1 C1995 National Semiconductor Cor.
