54AC151 - 8-Input Multiplexer

Product Overview

National Semiconductor

📥 Download Datasheet

54AC151 8-Input Multiplexer by National Semiconductor - Datasheet Preview — Datasheet preview – 54AC151

Datasheet Details

Part number	54AC151
Manufacturer	National Semiconductor
File Size	176.58 KB
Description	8-Input Multiplexer
Datasheet	54AC151 Datasheet

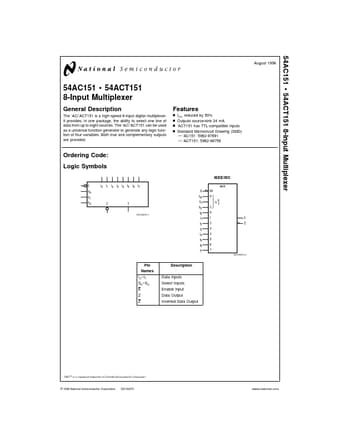

Additional preview pages of the 54AC151 datasheet.

Product details

Description

The ’AC/’ACT151 is a high-speed 8-input digital multiplexer.

Features

n n n n ICC reduced by 50% Outputs source/sink 24 mA ’ACT151 has TTL-compatible inputs Standard Microcircuit Drawing (SMD).
’AC151: 5962-87691.
’ACT151: 5962-88756 Ordering Code: Logic Symbols IEEE/IEC DS100270-1 DS100270-6 Pin Names I0.
I7 S0.
S2 E Z Z.
