2N6483 - N-Channel Monolithic Dual JFET

2N6483 Description

a Process 95 2N6483-85 N-Channel Monolithic Dual JFETs General .
The 2N6483 thru 2N6485 series of N-channel monolithic dual JFETs is designed for low to medium frequency low noise differential amplifier application.

2N6483 Applications

* requiring tight match and high common-mode rejection. Absolute Maximum Ratings (25°o Gate-Drain or Gate-Source Voltage Gate Current -50V 50 mA Device Dissipation (Each Side), Ta = 85°C (Derate 2.56 mW/°C) 250 mW Total Device Dissipation, Ta = 85' (Derate 4.3 mW/°C) 500 mW Storage Temperature

📥 Download Datasheet

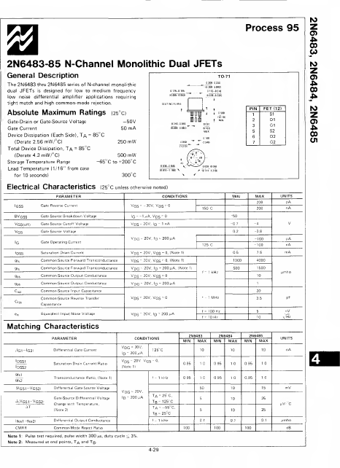

Preview of 2N6483 PDF

Datasheet Details

Part number
2N6483
Manufacturer
National Semiconductor
File Size
32.26 KB
Datasheet
2N6483-NationalSemiconductor.pdf
Description
N-Channel Monolithic Dual JFET
