LM96570 - Ultrasound Configurable Transmit Beamformer

National Semiconductor Corporation

The LM96570 by National Semiconductor Corporation is a Ultrasound Configurable Transmit Beamformer. Below is the official datasheet preview.

📥 Download Datasheet

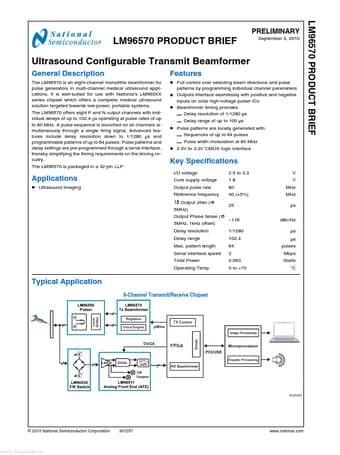

LM96570 Ultrasound Configurable Transmit Beamformer by National Semiconductor Corporation - Datasheet Preview — Official preview page of the **LM96570** Ultrasound Configurable Transmit Beamformer datasheet (National Semiconductor Corporation).

Datasheet Details

Part number	LM96570
Manufacturer	National Semiconductor Corporation
File Size	284.03 KB
Description	Ultrasound Configurable Transmit Beamformer
Datasheet	LM96570_NationalSemiconductorCorporation.pdf
Additional preview pages of the LM96570 datasheet.

LM96570 Product details

Description

The LM96570 is an eight-channel monolithic beamformer for pulse generators in multi-channel medical ultrasound applications.

Features

include delay resolution down to 1/1280 µs and programmable patterns of up to 64 pulses. Pulse patterns and delay settings are pre-programmed through a serial interface, thereby simplifying the timing requirements on the driving circuitry. The LM96570 is packaged in a 32-pin LLP. September 3, 2010 Features.
Full control over selecting beam directions and pulse.
patterns by programming individual channel parameters Outputs interface seamlessly with positive and negat.
