NW25H2000X - Pressure sensor

Features

  • Sensor size：2.5 x 2.5 mm Range：0~2000 kpa 2 Pressure sensor.

📥 Download Datasheet

Datasheet Details

Part number NW25H2000X
Manufacturer Nano MEMS
File Size 241.01 KB
Description Pressure sensor
Datasheet download datasheet NW25H2000X Datasheet

📁 Similar Datasheet

Other Datasheets by Nano MEMS

    Full PDF Text Transcription

    Click to expand full text

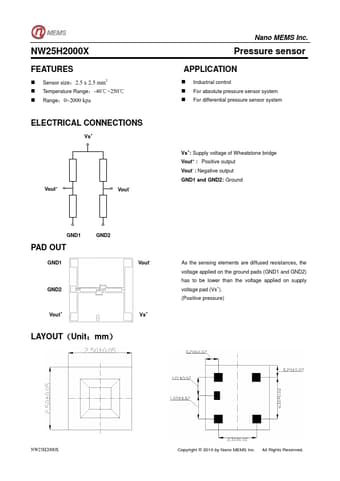

    www.DataSheet.co.kr Nano MEMS Inc. NW25H2000X FEATURES    Sensor size：2.5 x 2.5 mm Range：0~2000 kpa 2 Pressure sensor APPLICATION    Industrial control For absolute pressure sensor system For differential pressure sensor system Temperature Range：-40℃~250℃ ELECTRICAL CONNECTIONS Vs + Vs : Supply voltage of Wheatstone bridge Vout : Positive output Vout : Negative output GND1 and GND2: Ground Vout + + + + + Vout GND1 GND2 PAD OUT GND1 Vout - As the sensing elements are diffused resistances, the voltage applied on the ground pads (GND1 and GND2) has to be lower than the voltage applied on supply + GND2 voltage pad (Vs ). (Positive pressure) Vout + + + Vs + LAYOUT（Unit：mm） NW25H2000X Copyright © 2010 by Nano MEMS Inc. All Rights Reserved. Datasheet pdf - http://www.
