TX2S-L2-xxV - (TX Series) 2A CAPACITY RELAY

Download the TX2S-L2-xxV datasheet PDF. This datasheet also covers the TX2-1.5V variant, as both devices belong to the same (tx series) 2a capacity relay family and are provided as variant models within a single manufacturer datasheet.

Features

  • Breakdown voltage between contacts and coil: 2,000 V.
  • Surge withstand between contacts and coil: 2,500 V.
  • High contact capacity: 2 A 30 V DC.
  • Surface-mount type available mm inch RoHS Directive compatibility information http://www. nais-e. com/.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TX2-1.5V_Nais.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TX2S-L2-xxV
Manufacturer Nais
File Size 207.22 KB
Description (TX Series) 2A CAPACITY RELAY
Datasheet download datasheet TX2S-L2-xxV Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TX2SA-12V-TH TX RELAYS Panasonic
TX2SA-24V-TH TX RELAYS Panasonic
TX2SA-3V-TH TX RELAYS Panasonic
TX2SA-4.5V-TH TX RELAYS Panasonic
TX2SA-48V-TH TX RELAYS Panasonic

Other Datasheets by Nais

Part Number Description
TX2S-L-xxV (TX Series) 2A CAPACITY RELAY
TX2S-xxV (TX Series) 2A CAPACITY RELAY
TX2SA-L-xx (TX Series) 2A Capacity Relay
TX2SA-L2-xx (TX Series) 2A Capacity Relay
TX2SL-L-xx (TX Series) 2A Capacity Relay

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

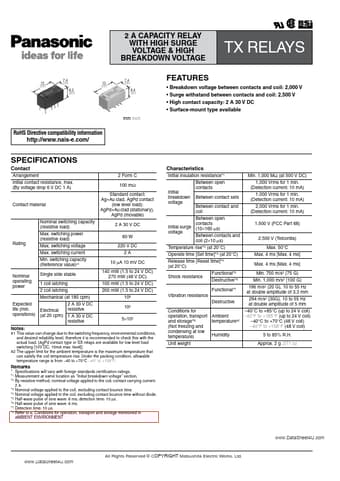

TX 2 A CAPACITY RELAY WITH HIGH SURGE VOLTAGE & HIGH BREAKDOWN VOLTAGE 7.4 .291 8.2 .323 7.4 .291 8.4 .331 TESTING TX RELAYS 15 .591 15 .591 FEATURES • Breakdown voltage between contacts and coil: 2,000 V • Surge withstand between contacts and coil: 2,500 V • High contact capacity: 2 A 30 V DC • Surface-mount type available mm inch RoHS Directive compatibility information http://www.nais-e.com/ SPECIFICATIONS Contact Arrangement Initial contact resistance, max. (By voltage drop 6 V DC 1 A) 2 Form C 100 mΩ Standard contact: Ag+Au clad, AgPd contact (low level load): AgPd+Au clad (stationary), AgPd (movable) 2 A 30 V DC 60 W 220 V DC 2A 10 µA 10 mV DC 140 mW (1.5 to 24 V DC) 270 mW (48 V DC) 100 mW (1.5 to 24 V DC) 200 mW (1.
