MBR75100 - (MBR7545 - MBR75100R) Schottky Power Diode

Product Overview

Naina Semiconductor

📥 Download Datasheet

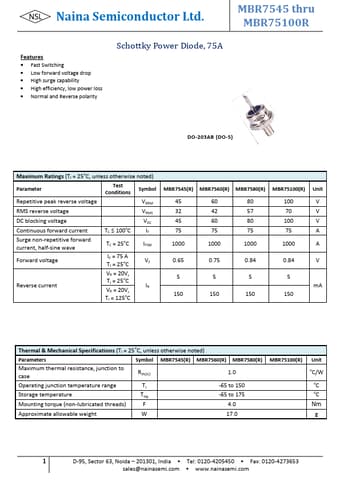

MBR75100 (MBR7545 - MBR75100R) Schottky Power Diode by Naina Semiconductor - Datasheet Preview — Datasheet preview – MBR75100

Datasheet Details

Part number	MBR75100
Manufacturer	Naina Semiconductor
File Size	171.65 KB
Description	(MBR7545 - MBR75100R) Schottky Power Diode
Datasheet	MBR75100 Datasheet
Note	This datasheet PDF includes multiple part numbers: MBR75100, MBR7545. Please refer to the document for exact specifications by model.
Additional preview pages of the MBR75100 datasheet.

Product details

Features

Fast Switching Low forward voltage drop High surge capability High efficiency, low power loss Normal and Reverse polarity MBR7545 thru MBR75100R DO-203AB (DO-5) Maximum Ratings (TJ = 25oC, unless otherwise noted) Parameter Test Conditions Symbol MBR7545(R) MBR7560(R) MBR7580(R) MBR75100(R) Unit Repetitive peak reverse voltage RMS reverse voltage DC blocking voltage Continuous forward current Surge non-repetitive forward current, half-sine wav.
