MBR6045 - (MBR6045 - MBR60100R) Schottky Power Diode

Product Overview

Naina Semiconductor

Part number	MBR6045
Manufacturer	Naina Semiconductor
File Size	171.51 KB
Description	(MBR6045 - MBR60100R) Schottky Power Diode
Datasheet	MBR6045 Datasheet

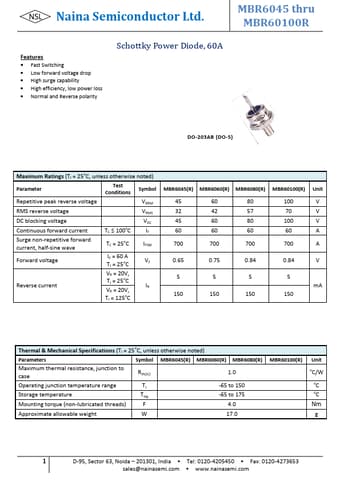

Additional preview pages of the MBR6045 datasheet.

Fast Switching Low forward voltage drop High surge capability High efficiency, low power loss Normal and Reverse polarity MBR6045 thru MBR60100R DO-203AB (DO-5) Maximum Ratings (TJ = 25oC, unless otherwise noted) Parameter Test Conditions Symbol MBR6045(R) MBR6060(R) MBR6080(R) MBR60100(R) Unit Repetitive peak reverse voltage RMS reverse voltage DC blocking voltage Continuous forward current Surge non-repetitive forward current, half-sine wav.
