40NSF80 - Fast Recovery Diodes

Product Overview

Naina Semiconductor

📥 Download Datasheet

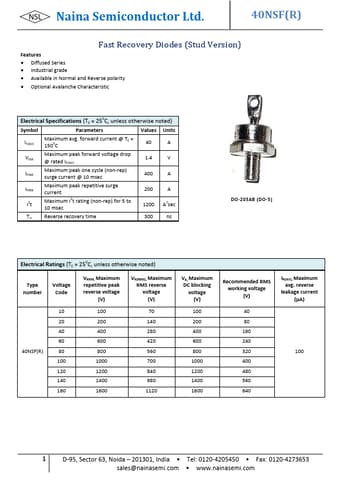

40NSF80 Fast Recovery Diodes by Naina Semiconductor - Datasheet Preview — Datasheet preview – 40NSF80

Datasheet Details

Part number	40NSF80
Manufacturer	Naina Semiconductor
File Size	99.72 KB
Description	Fast Recovery Diodes
Datasheet	40NSF80 Datasheet
Note	This datasheet PDF includes multiple part numbers: 40NSF80, 40NSF. Please refer to the document for exact specifications by model.
Additional preview pages of the 40NSF80 datasheet.

Product details

Features

Diffused Series.
Industrial grade.
Available in Normal and Reverse polarity.
Optional Avalanche Characteristic Electrical Specifications (TE = 250C, unless otherwise noted) Symbol Parameters Values Units IF(AV) Maximum avg. forward current @ TE = 1500C 40 A VFM Maximum peak forward voltage drop @ rated IF(AV) 1.4 V IFSM Maximum peak one cycle (non-rep) surge current @ 10 msec 400 A IFRM Maximum peak repetitive surge current 200 A I2t Maxim.
