200NSR, 200NS - Standard Recovery Diodes

Name: 200NSR
SKU: 200NSR-707372

Naina Semiconductor

The 200NSR by Naina Semiconductor is a Standard Recovery Diodes. Below is the official datasheet preview.

Datasheet Details

Part number	200NSR, 200NS
Manufacturer	Naina Semiconductor
File Size	103.12 KB
Description	Standard Recovery Diodes
Datasheet	200NS_NainaSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: 200NSR, 200NS. Please refer to the document for exact specifications by model.

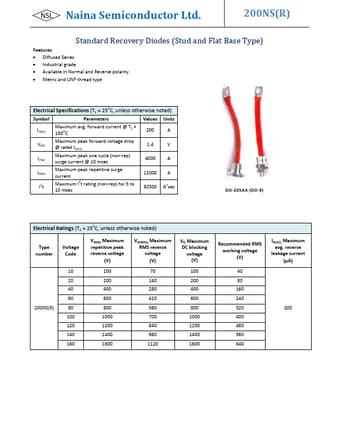

Additional preview pages of the 200NSR datasheet.

Diffused Series.
Industrial grade.
Available in Normal and Reverse polarity.
Metric and UNF thread type 200 200NS(R) Standard andard Recovery Diodes (Stud and Flat Base Type) Electrical Specifications (TE = 250C, unless otherwise noted) Symbol IF(AV) VFM IFSM IFRM It 2 Parameters Maximum avg. forward current @ TE = O 150 C Maximum peak forward voltage drop @ rated IF(AV) Maximum peak one cycle (non-rep) surge current @ 10 msec Maximum peak repetitive surg.
