1N2976B - ZENER DIODES

Download the 1N2976B datasheet PDF (1N2970B included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for zener diodes.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N2970B_NainaSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1N2976B
Manufacturer Naina Semiconductor
File Size 141.36 KB
Description ZENER DIODES
Datasheet download datasheet 1N2976B Datasheet

📁 Similar Datasheet

  • 1N2976B - ZENER DIODES (Digitron Semiconductors)
  • 1N2976B - 10Watt Zener Diodes (Microsemi)
  • 1N2976 - ZENER DIODES (Motorola)
  • 1N2976 - Zener Diodes (America Semiconductor)
  • 1N2976 - 10 WATTS ZENER DIODES (Solid State)
  • 1N2976 - 10WATT ZENER DIODE (TAECL)
  • 1N2970 - ZENER DIODES (Motorola)
  • 1N2970 - Zener Diodes (America Semiconductor)
  • 1N2970 - 10 WATTS ZENER DIODES (Solid State)
  • 1N2970B - ZENER DIODES (Digitron Semiconductors)
Other Datasheets by Naina Semiconductor

Full PDF Text Transcription

Click to expand full text

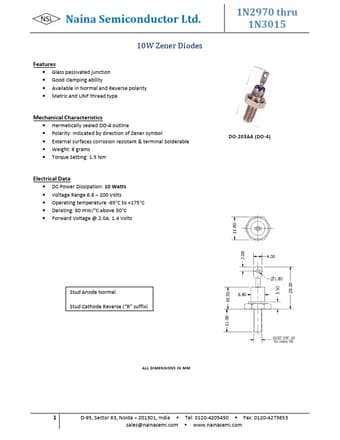

www.DataSheet.co.kr Naina Semiconductor emiconductor Ltd. Zener Diodes Electrical Characteristics (TC = 25OC unless otherwise specified) Nominal Zener Voltage VZ@IZT (Volts) 6.8 7.5 8.2 9.1 10 11 12 13 14 15 16 17 18 19 20 22 24 25 27 30 33 36 39 43 45 47 50 51 52 56 62 68 75 82 91 100 105 110 120 130 140 150 160 175 180 200 Zener Test Current IZT (mA) 370 335 305 275 250 230 210 190 180 170 155 145 140 130 125 115 105 100 95 85 75 70 65 60 55 55 50 50 50 45 40 37 33 30 28 25 25 23 20 19 18 17 16 14 14 12 Max Zener Impedance ZZT@IZT (Ohms) 1.2 1.3 1.5 2.
