1N2804B

The 1N2804B is 50W Zener Diodes designed by Naina Semiconductor.

Product Overview

Naina Semiconductor

📥 Download Datasheet

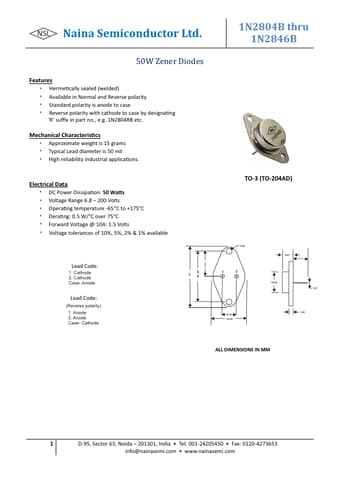

1N2804B 50W Zener Diodes by Naina Semiconductor - Datasheet Preview — Datasheet preview – 1N2804B

Datasheet Details

Part number	1N2804B
Manufacturer	Naina Semiconductor
File Size	458.74 KB
Description	50W Zener Diodes
Datasheet	1N2804B-NainaSemiconductor.pdf
Additional preview pages of the 1N2804B datasheet.

Product details

Features

Herme cally sealed (welded).
Available in Normal and Reverse polarity.
Standard polarity is anode to case.
Reverse polarity with cathode to case by designa ng ‘R’ suﬃx in part no. , e. g. 1N2804RB etc. Mechanical Characteris cs.
Approximate weight is 15 grams.
Typical Lead diameter is 50 mil.
High reliability industrial applica ons. Electrical Data.
DC Power Dissipa on: 50 Wa s.
Voltage Range 6.8.
200 Volts.
Opera ng temperature -65oC to.
