135NSF - Standard Recovery Diodes

Name: 135NSF
SKU: 135NSF-980360

Naina Semiconductor

The 135NSF by Naina Semiconductor is a Standard Recovery Diodes. Below is the official datasheet preview.

Datasheet Details

Part number	135NSF
Manufacturer	Naina Semiconductor
File Size	144.26 KB
Description	Standard Recovery Diodes
Datasheet	135NSF-NainaSemiconductor.pdf

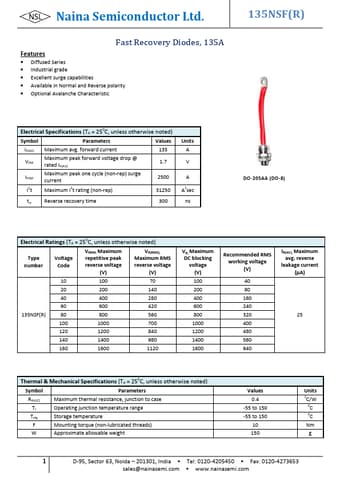

Additional preview pages of the 135NSF datasheet.

Diffused Series.
Industrial grade.
Excellent surge capabilities.
Available in Normal and Reverse polarity.
Optional Avalanche Characteristic 135NSF(R) Electrical Specifications (TA = 250C, unless otherwise noted) Symbol Parameters Values IF(AV) Maximum avg. forward current VFM Maximum peak forward voltage drop @ rated IF(AV) Maximum peak one cycle (non-rep) surge IFSM current 135 1.7 2500 I2t Maximum I2t rating (non-rep) 31250 trr Revers.
