Datasheet Details
Part number:
NY7C130A, NY7A004A
Manufacturer:
NYQUEST
File Size:
857.97 KB
Description:
4-bit mcu.
Note:
This datasheet PDF includes multiple part numbers: NY7C130A, NY7A004A.
Please refer to the document for exact specifications by model.
NY7C130A, NY7A004A, 4-bit MCU
1.0 2013/06/28 Formal release.
Modified Page * 1.
Add 4 mask options for Push-Pull analog volume adjustment.
2.
Revise the description of Chapter 2.10.1 Speech Synthesis.
3.
Provide the example code of ramp-up/ramp-down for DAC 1.1 2013/08/16 output.
4.
Flag Z will not be affected

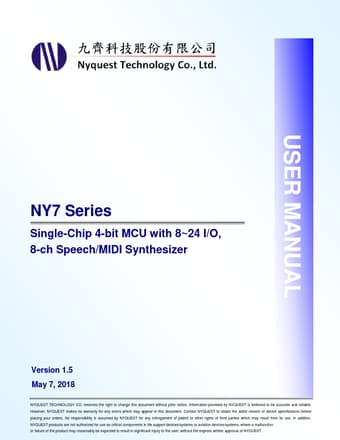

USER MANUAL NY7 Series Single-Chip 4-bit MCU with 8~24 I/O, 8-ch Speech/MIDI Synthesizer Version 1.5 May 7, 2018 NYQUEST TECHNOLOGY CO.
reserves the right to change this document without prior notice.
Information provided by NYQUEST is believed to be accurate and reliable.
However, NYQUEST makes no warranty for any errors which may appear in this document.
Contact NYQUEST to obtain the latest version of device specifications before placing your orders.
No responsibility is assumed by NYQUEST fo
