UMA1014 - Low-power frequency synthesizer for mobile radio communications

NXP

📥 Download Datasheet

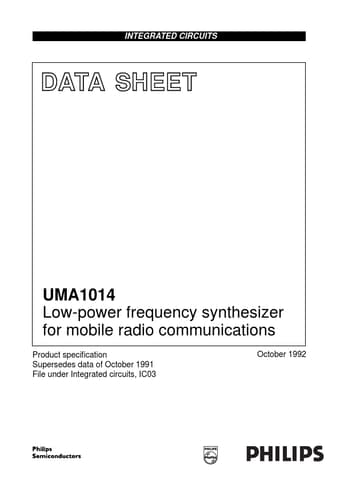

UMA1014 Datasheet Preview — Preview of UMA1014 PDF

Datasheet Details

Part number	UMA1014
Manufacturer	NXP
File Size	90.49 KB
Description	Low-power frequency synthesizer for mobile radio communications
Datasheet	UMA1014_PhilipsSemiconductors.pdf

UMA1014 Product details

Description

UMA1014 The UMA1014 is a low-power universal synthesizer which has been designed for use in channelized radio communication.The IC is manufactured in bipolar technology and is designed to operate at 5 to 100 kHz channel spacing with an RF input from 50 to 1100 MHz.The channel is programmed via a standard I2C-bus.A low-power sensitive RF divider is incorporated together with a dead-zone eliminated, 3-state phase comparator.The low-noise charge pump delivers 1 mA or 1/2 mA output current to

Features

Single chip synthesizer; compatible with Philips cellular radio chipset.
Fully programmable RF divider.
I2C interface for two-line serial bus.
On-chip crystal oscillator/TCXO buffer from 3 to 16 MHz.
16 reference division ratios allowing 5 to 100 kHz channel spacing.
1/8 crystal frequency output.
On-chip out-of-lock indication.
Two extra VCO control outputs.
Latched synthesizer alarm output.
Status registe.
