UBA2030T - Full bridge driver IC

NXP

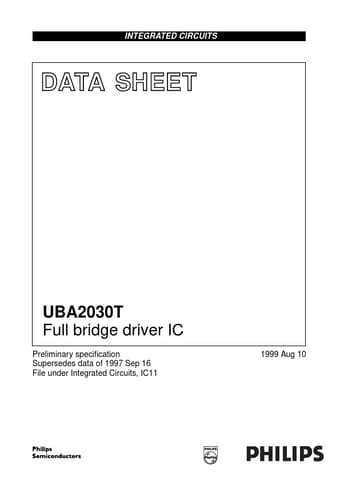

UBA2030T Datasheet Preview — Preview of UBA2030T PDF

Datasheet Details

Part number	UBA2030T
Manufacturer	NXP ↗
File Size	94.74 KB
Description	Full bridge driver IC
Datasheet	UBA2030T_PhilipsSemiconductors.pdf

UBA2030T Product details

Description

plastic small outline package; 24 leads; body width 7.5 mm GENERAL DESCRIPTION UBA2030T The UBA2030T is a high voltage integrated circuit fabricated using the BCD750 power logic process.The circuit is designed for driving the MOSFETs in a full bridge configuration.In addition, it

Features

Full bridge driver.
Integrated bootstrap diodes.
Integrated high voltage level shift function.
High voltage input (570 V maximum) for the internal supply.
Adjustable ‘dead time’.
Adjustable oscillator frequency.
High voltage level shifter for the bridge enable function.
Shut-down function.
