UA723C, UA723 Precision voltage regulator

UA723C Description

www.DataSheet4U.com Philips Semiconductors Product specification Precision voltage regulator µA723/723C .
The µA723/µA723C is a monolithic precision voltage regulator capable of operation in positive or negative supplies as a series, shunt, switching, or f.

UA723C Features

* NON-INVERTING INPUT 5 VREF 6 V
* 7
* Positive or negative supply operation
* Series, shunt, switching, or floating operation
* 0.01% line and load regulation
* Output voltage adjustable from 2V to 37V
* Output current to 150mA without external pass tr

UA723C Applications

* VIN V+ VC VOUT R2 V+ VREF RSC CL CS VC VOUT VZ R5 T1 VREF R1 REGULATED OUTPUT R4 CL CS N. I. INV N. I. CREF INV C1 R3 R2 V
* COMP R3 R1 COMP 100pF C1 100pF REGULATED OUTPUT NOTES: V OUT + ƪ V REF x R2 R1 ) R2 ƫ NOTE: V OUT + ƪ V REF 2 x R1 ) R2 ; R3 + R4 R1 ƫ R3 +

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: UA723C, UA723. Please refer to the document for exact specifications by model.

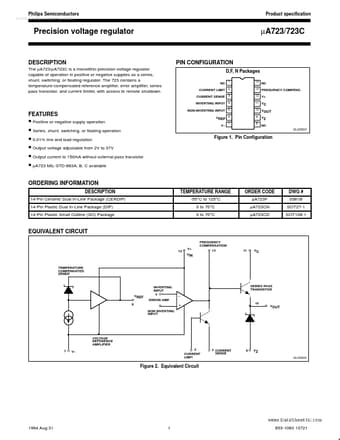

datasheet Preview Page 2 datasheet Preview Page 3
