TJA1083G FlexRay node transceiver

TJA1083G Description

TJA1083G FlexRay node transceiver Rev.1 * 18 January 2018 Product data sheet 1.General .
The TJA1083G FlexRay node transceiver is compliant with the FlexRay Electrical Physical Layer specification ISO 17458-4:2013 (see Ref.

TJA1083G Features

* 2.1 Optimized for time triggered communication systems
* Compliant with ISO 17458-4:2013 (see Ref. 2)
* Automotive product qualification in accordance with AEC-Q100
* Data transfer rates from 2.5 Mbit/s to 10 Mbit/s
* Supports 60 ns minimum bit time at 400 mV differential input volta

TJA1083G Applications

* that do not need enhanced power management and are typically switched by the ignition or activated by a dedicated wake-up line. The TJA1083G provides a differential transmit capability to the network and a differential receive capability to the FlexRay controller. It offers excellent ElectroMagnetic

📥 Download Datasheet

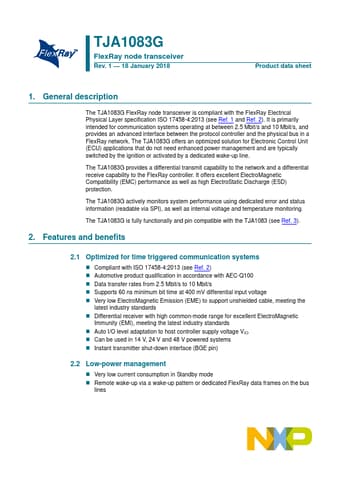

Preview of TJA1083G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TJA1083G
Manufacturer
NXP ↗
File Size
470.13 KB
Datasheet
TJA1083G-NXP.pdf
Description
FlexRay node transceiver
