TJA1040U, TJA1040 High speed CAN transceiver

TJA1040U Description

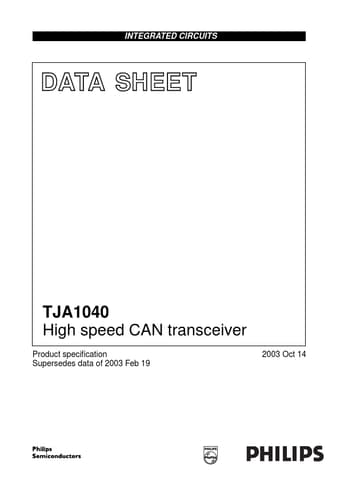

INTEGRATED CIRCUITS DATA SHEET TJA1040 High speed CAN transceiver Product speciļ¬cation Supersedes data of 2003 Feb 19 2003 Oct 14 Philips Semicond.
The TJA1040 is the interface between the Controller Area Network (CAN) protocol controller and the physical bus.

TJA1040U Features

* Fully compatible with the ISO 11898 standard
* High speed (up to 1 MBaud)
* Very low-current standby mode with remote wake-up capability via the bus
* Very low ElectroMagnetic Emission (EME)
* Differential receiver with high common-mode range for ElectroMagn

TJA1040U Applications

* up to 1 MBaud, in passenger cars. The device provides differential transmit capability to the bus and differential receive capability to the CAN controller. The TJA1040 is the next step up from the TJA1050 high speed CAN transceiver. Being pin compatible and offering the same excellent EMC performa

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TJA1040U, TJA1040. Please refer to the document for exact specifications by model.
