TEA6300T - Sound fader control circuit

Description

The Sound Fader Control circuit (SOFAC) is an I2C-bus controlled preamplifier for car radios.

Features

  • Source selector for three stereo inputs.
  • Inputs and outputs for noise reduction circuits.
  • Volume and balance control; control range of 86 dB in steps of 2 dB.
  • Bass and treble control from + 15 dB (treble 12 dB) to.
  • 12 dB in steps of 3 dB.
  • Fader control from 0 dB to.
  • 30 dB in steps of 2 dB.
  • Fast muting.
  • Low noise suitable for DOLBY.
  • B and C NR (noise reduction).
  • Signal handling suitable for compact disc.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TEA6310T Sound Fader Control Circuit Philips
TEA6414 Bus Controlled Video Matrix Switch ST Microelectronics
TEA6414A Bus Controlled Video Matrix Switch ST Microelectronics
TEA6415 Bus Controlled Video Matrix Switch ST Microelectronics
TEA6415B Bus Controlled Video Matrix Switch ST Microelectronics

Other Datasheets by NXP Semiconductors

Part Number Description
TEA6300 Sound fader control circuit
TEA6320 Sound fader control circuit
TEA6320T Sound fader control circuit
TEA6321 Sound fader control circuit
TEA6321T Sound fader control circuit

Full PDF Text Transcription

Click to expand full text

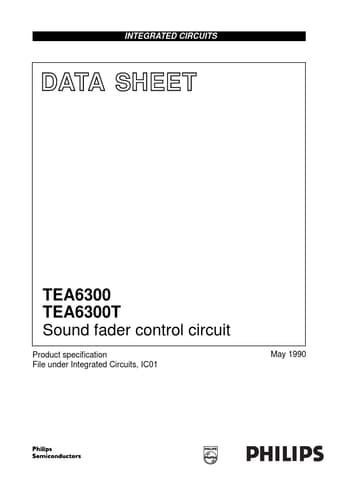

INTEGRATED CIRCUITS DATA SHEET TEA6300 TEA6300T Sound fader control circuit Product speciļ¬cation File under Integrated Circuits, IC01 May 1990 Philips Semiconductors Product speciļ¬cation Sound fader control circuit GENERAL DESCRIPTION The Sound Fader Control circuit (SOFAC) is an I2C-bus controlled preamplifier for car radios.
