TEA6100 - FM/IF system and microcomputer-based tuning interface

NXP

📥 Download Datasheet

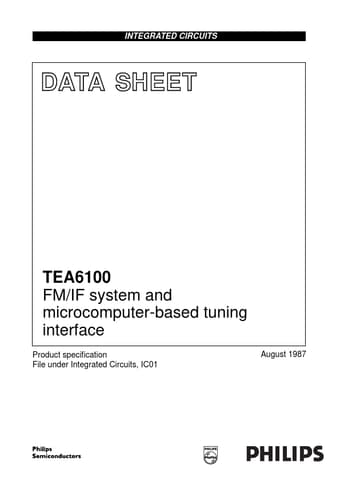

TEA6100 Datasheet Preview — Preview of TEA6100 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TEA6100
Manufacturer	NXP
File Size	513.42 KB
Description	FM/IF system and microcomputer-based tuning interface
Datasheet	TEA6100_PhilipsSemiconductors.pdf

TEA6100 Product details

Description

The TEA6100 is a FM/IF system circuit intended for microcomputer controlled radio receivers.

Features

4-stage symmetrical IF limiting amplifier.
Software selectable AM or FM input.
Symmetrical quadrature demodulator.
Single-ended LF output stage.
D. C. output level determined by the input signal.
Semi-adjustable AM and FM level voltage.
Multi-path detector/rectifier/amplifier circuitry.
3-bit level information and 3-bit multi-path information.
