TEA1506AT, TEA1506 - GreenChip SMPS controller

Name: TEA1506AT
SKU: TEA1506AT-624414

NXP

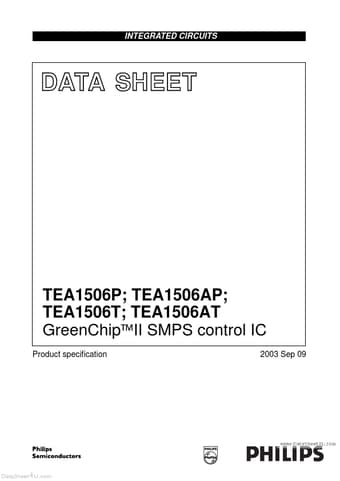

The TEA1506AT by NXP is a GreenChip SMPS controller. Below is the official datasheet preview.

Datasheet Details

Part number	TEA1506AT, TEA1506
Manufacturer	NXP
File Size	393.32 KB
Description	GreenChip SMPS controller
Datasheet	TEA1506_PhilipsSemiconductors.pdf
Note	This datasheet PDF includes multiple part numbers: TEA1506AT, TEA1506. Please refer to the document for exact specifications by model.
Additional preview pages of the TEA1506AT datasheet.

is the second generation of green The Switched Mode Power Supply (SMPS) control ICs.

Distinctive features.
Universal mains supply operation (70 to 276 V AC).
High level of integration; giving a low external component count. Green features.
Valley or zero voltage switching for minimum switching losses.
Efficient quasi-resonant operation at high power levels.
Frequency reduction at low power standby for improved system efficiency (≤3 W).
Cycle skipping mode at very low loads. Protection features.
Safe restart mode for.
