TEA1210TS - High efficiency/ high current DC/DC converter

NXP

The TEA1210TS by NXP is a High efficiency/ high current DC/DC converter. Below is the official datasheet preview.

📥 Download Datasheet

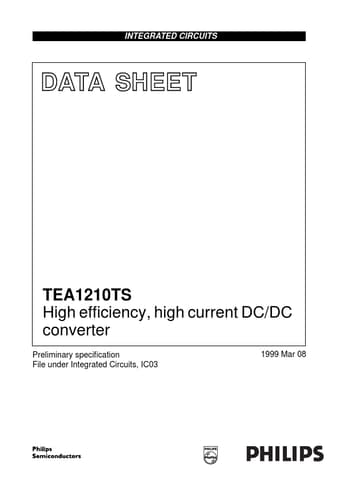

TEA1210TS High efficiency/ high current DC/DC converter by NXP - Datasheet Preview — Official preview page of the **TEA1210TS** High efficiency/ high current DC/DC converter datasheet (NXP).

Datasheet Details

Part number	TEA1210TS
Manufacturer	NXP
File Size	83.93 KB
Description	High efficiency/ high current DC/DC converter
Datasheet	TEA1210TS_PhilipsSemiconductors.pdf
Additional preview pages of the TEA1210TS datasheet.

TEA1210TS Product details

Description

GENERAL DESCRIPTION TEA1210TS The TEA1210TS is a fully integrated DC/DC converter.Efficient, compact and dynamic power conversion is achieved using a novel digitally controlled concept like Pulse Width Modulation (PWM) or Pulse Frequency Modulation (PFM), integrated low R CMOS power switches with low parasitic capacitances, and fully synchronous rectification.The device operates at 600 kHz switching frequency which enables the use of external components with minimum size.The switching frequ

Features

Fully integrated DC/DC converter circuit, featuring internal very low RDSon power MOSFETs.
Up-or-down conversion.
Start-up from 1.85 V input voltage.
Adjustable output voltage.
High efficiency over large load range.
600 kHz switching frequency.
Low quiescent power consumption.
Synchronizing with external clock.
Two selectable current limits for efficient battery use in case of dynamic loads.
Up to 100% dut.
