TEA1094AM - Hands-free

NXP

The TEA1094AM by NXP is a Hands-free. Below is the official datasheet preview.

📥 Download Datasheet

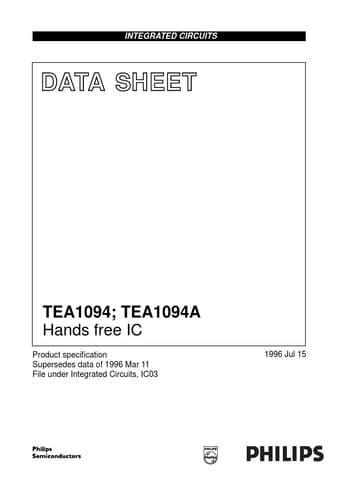

TEA1094AM Hands-free by NXP - Datasheet Preview — Official preview page of the **TEA1094AM** Hands-free datasheet (NXP).

Datasheet Details

Part number	TEA1094AM
Manufacturer	NXP
File Size	221.38 KB
Description	Hands-free
Datasheet	TEA1094AM_PhilipsSemiconductors.pdf
Additional preview pages of the TEA1094AM datasheet.

TEA1094AM Product details

Description

plastic dual in-line package; 28 leads (600 mil) plastic dual in-line package; 24 leads (600 mil) APPLICATIONS TEA1094; TEA1094A Mains, battery or line-powered telephone sets with hands-free/listening-in functions Cordless telephones Answering machines Fax machines.

Features

Low power consumption.
Power-down function (TEA1094A only).
Microphone channel with:.
externally adjustable gain.
microphone mute function.
Loudspeaker channel with:.
externally adjustable gain.
dynamic limiter to prevent distortion.
rail-to-rail output stage for single-ended load drive.
logarithmic volume control via linear potentiometer.
loudspeaker mute function.
Duplex controller co.
