TDA9882 - Alignment-free multistandard vision and QSS FM sound IF PLL demodulator

Name: TDA9882
SKU: TDA9882-676946

NXP

📥 Download Datasheet

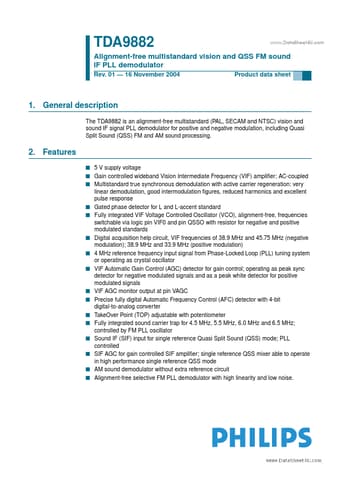

TDA9882 Datasheet Preview — Preview of TDA9882 PDF

Datasheet Details

Part number	TDA9882
Manufacturer	NXP
File Size	275.54 KB
Description	Alignment-free multistandard vision and QSS FM sound IF PLL demodulator
Datasheet	TDA9882_PhilipsSemiconductors.pdf

TDA9882 Product details

Description

The TDA9882 is an alignment-free multistandard (PAL, SECAM and NTSC) vision and sound IF signal PLL demodulator for positive and negative modulation, including Quasi Split Sound (QSS) FM and AM sound processing.

Features

s 5 V supply voltage s Gain controlled wideband Vision Intermediate Frequency (VIF) ampliﬁer; AC-coupled s Multistandard true synchronous demodulation with active carrier regeneration: very linear demodulation, good intermodulation ﬁgures, reduced harmonics and excellent pulse response s Gated phase detector for L and L-accent standard s Fully integrated VIF Voltage Controlled Oscillator (VCO), alignment-free, frequencies switchable via logic pin VIF0 and pin QSSO with resistor for negative and.
