TDA8702 - 8-bit video digital-to-analog converter

Name: TDA8702
SKU: TDA8702-325367

NXP

📥 Download Datasheet

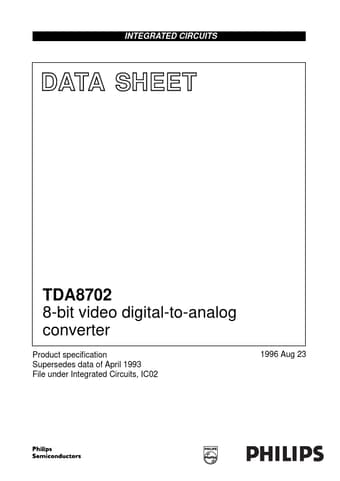

TDA8702 Datasheet Preview — Preview of TDA8702 PDF

Datasheet Details

Part number	TDA8702
Manufacturer	NXP
File Size	120.76 KB
Description	8-bit video digital-to-analog converter
Datasheet	TDA8702_PhilipsSemiconductors.pdf

TDA8702 Product details

Description

APPLICATIONS TDA8702 High-speed digital-to-analog conversion Digital TV including: field progressive scan line progressive scan Subscriber TV decoders Satellite TV decoders Digital VCRs.

Features

8-bit resolution.
Conversion rate up to 30 MHz.
TTL input levels.
Internal reference voltage generator.
Two complementary analog voltage outputs.
No deglitching circuit required.
Internal input register.
Low power dissipation.
Internal 75 Ω output load (connected to the analog supply).
Very few external components required.
