TDA8511J - 4 x 13 W single-ended power amplifiers

Description

The device is primarily developed for multi-media applications and active speaker systems.

The TDA8511J is an integrated class-B output amplifier in a 17-lead DIL-bent-SIL power package.

It contains 4 × 13 W single-ended amplifiers.

100

Features

  • Requires very few external components.
  • High output power.
  • Fixed gain.
  • Diagnostic facility (distortion, short-circuit and temperature detection).
  • Good ripple rejection.
  • Mode select switch (operating, mute and standby).
  • AC and DC short-circuit safe to ground and to VP.
  • Low power dissipation in any short-circuit condition.
  • Thermally protected.
  • Reverse polarity safe.
  • Electrostatic discharge protection.

📥 Download Datasheet

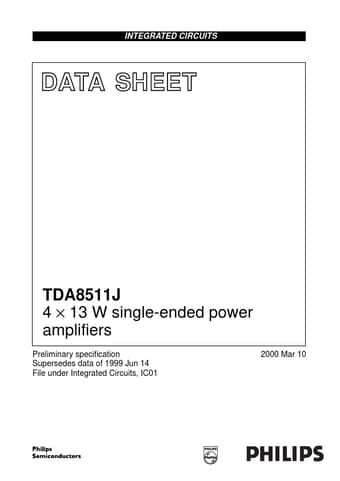

Datasheet preview – TDA8511J

Datasheet Details

Part number TDA8511J
Manufacturer NXP Semiconductors
File Size 80.63 KB
Description 4 x 13 W single-ended power amplifiers
Datasheet download datasheet TDA8511J Datasheet
Additional preview pages of the TDA8511J datasheet.

📁 Similar Datasheet

  • TDA8547 - 2 x 0.7W BTL AUDIO AMPLIFIER (UTC)
  • TDA8559T - Low-voltage stereo headphone amplifier (Philips)
  • TDA8566 - stereo BTL car radio power amplifier (NXP Semiconductors)
  • TDA8577 - Dual common-mode rejection differential line receiver (Philips)
  • TDA8588AJ - Power Amplifier and Multiple Voltage Regulator (Philips)
  • TDA8588BJ - Power Amplifier and Multiple Voltage Regulator (Philips)
  • TDA8588J - Power Amplifier and Multiple Voltage Regulator (Philips)
  • TDA8589BJ - I2C Bus Controlled 4 x 45 Watt Power Amplifier and Multiple Voltage Regulator (Philips)
  • TDA8595 - I2C-bus controlled 4 x 45 W power amplifer (NXP Semiconductors)
  • TDA8025 - IC card interface (NXP Semiconductors)
Other Datasheets by NXP
  • TDA8510J - 26 W BTL and 2 x 13 W SE power amplifiers
  • TDA8512J - 26 W BTL and 2 x 13 W SE or 4 x 13 W SE power amplifier
  • TDA8501 - PAL/NTSC encoder
  • TDA8505 - SECAM encoder
  • TDA8540 - 4 X 4 video switch matrix
  • TDA8541 - 1 W BTL audio amplifier
  • TDA8542 - 2 x 1 W BTL audio amplifier
  • TDA8542AT - 2 x 1.5 W BTL audio amplifier

Full PDF Text Transcription

Click to expand full text
INTEGRATED CIRCUITS DATA SHEET TDA8511J 4 × 13 W single-ended power amplifiers Preliminary specification Supersedes data of 1999 Jun 14 File under Integrated Circuits, IC01 2000 Mar 10 Philips Semiconductors Preliminary specification 4 × 13 W single-ended power amplifiers FEATURES • Requires very few external components • High output power • Fixed gain • Diagnostic facility (distortion, short-circuit and temperature detection) • Good ripple rejection • Mode select switch (operating, mute and standby) • AC and DC short-circuit safe to ground and to VP • Low power dissipation in any short-circuit condition • Thermally protected • Reverse polarity safe • Electrostatic discharge protection • No switch-on/switch-off plop • Flexible leads • Low thermal resistance • Identical inputs.
